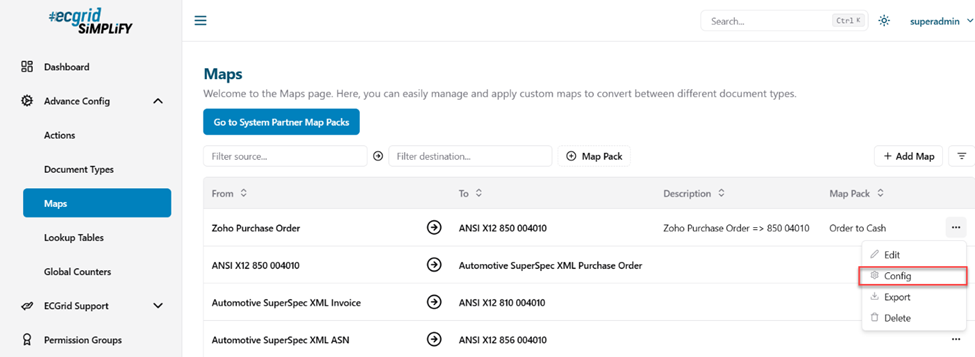

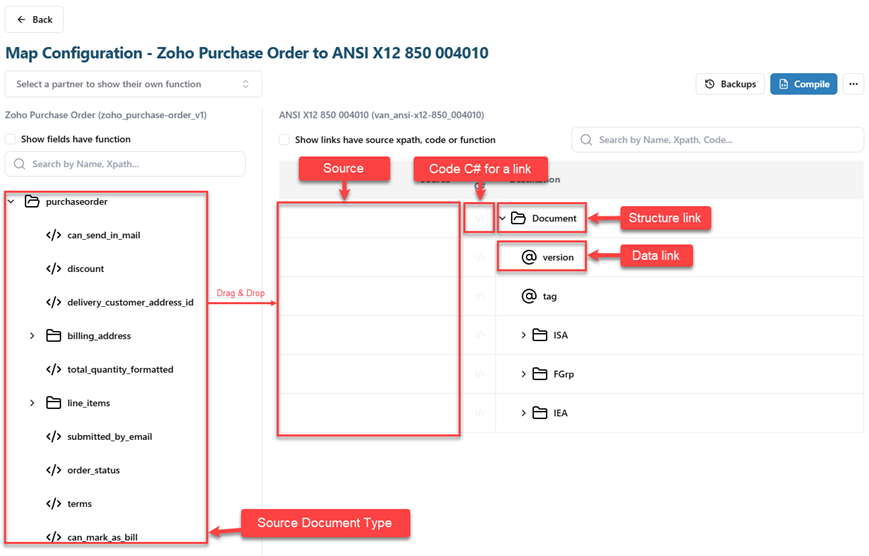

- Explain drag and drop: After entering the map, you will see the Source Document Type on the left side, which you can drag and drop into the Source on the right side.

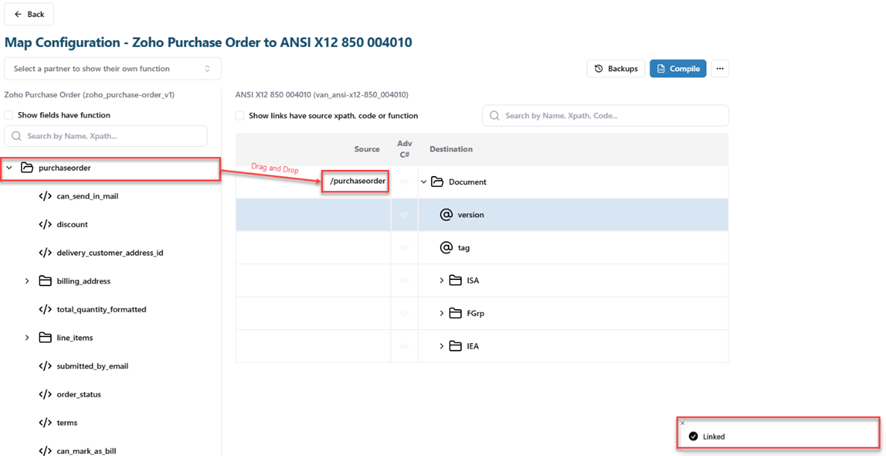

- Drag and Drop: You can move a field in the Source Document Type from the left side to the right side by holding down the mouse.

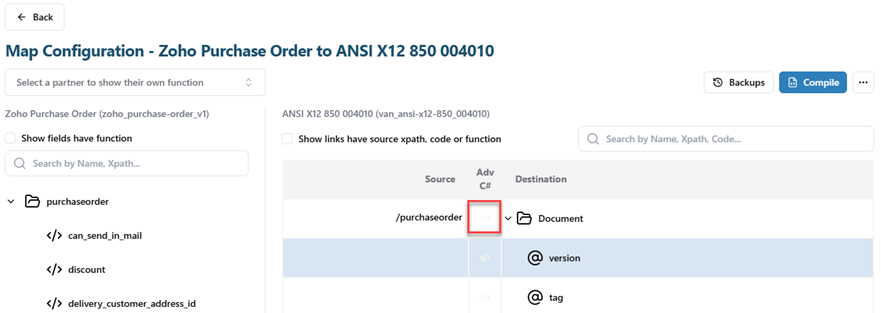

Linked: This is a notification that the link was successful. - Use C# code in a link: Click the button in the red square.

- You can use C# to hard-code the logic as desired.

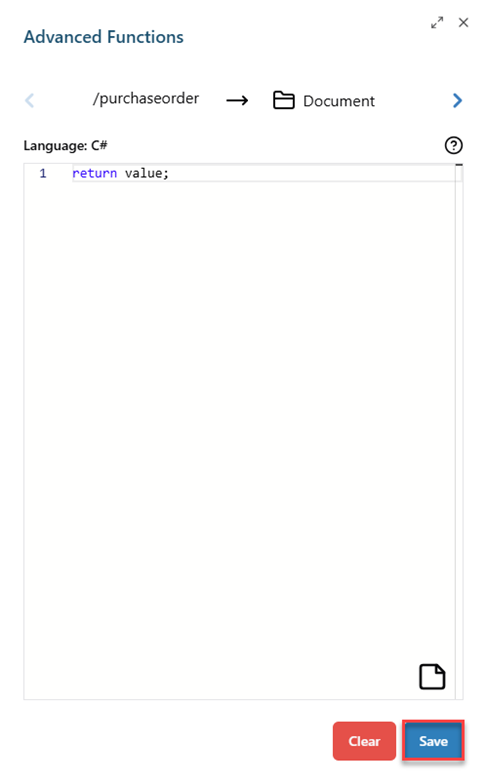

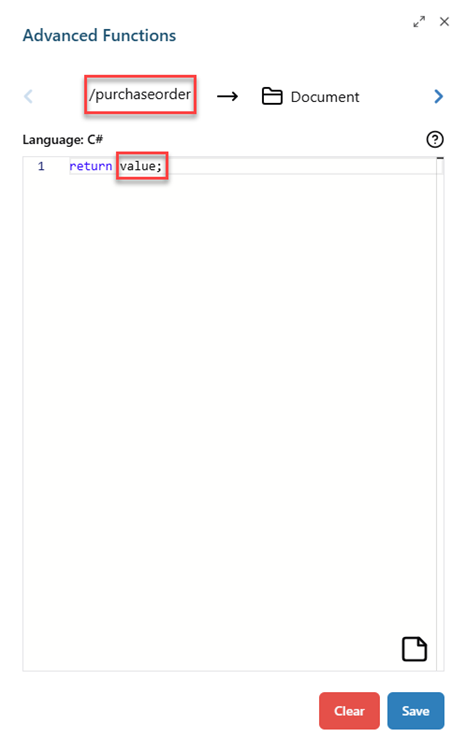

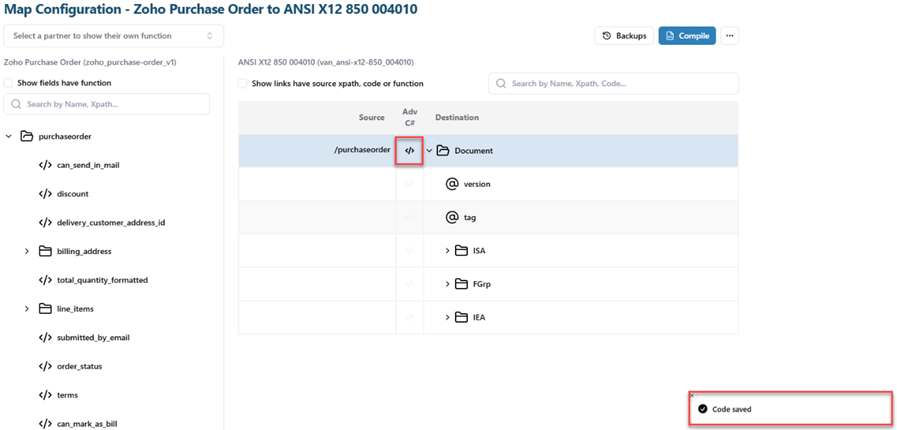

/purchaseorder: The source is the item dragged and dropped from the Source Document Type, and it also represents the "value." - Save the code in a link: Click Save button.


- You can use C# to hard-code the logic as desired.

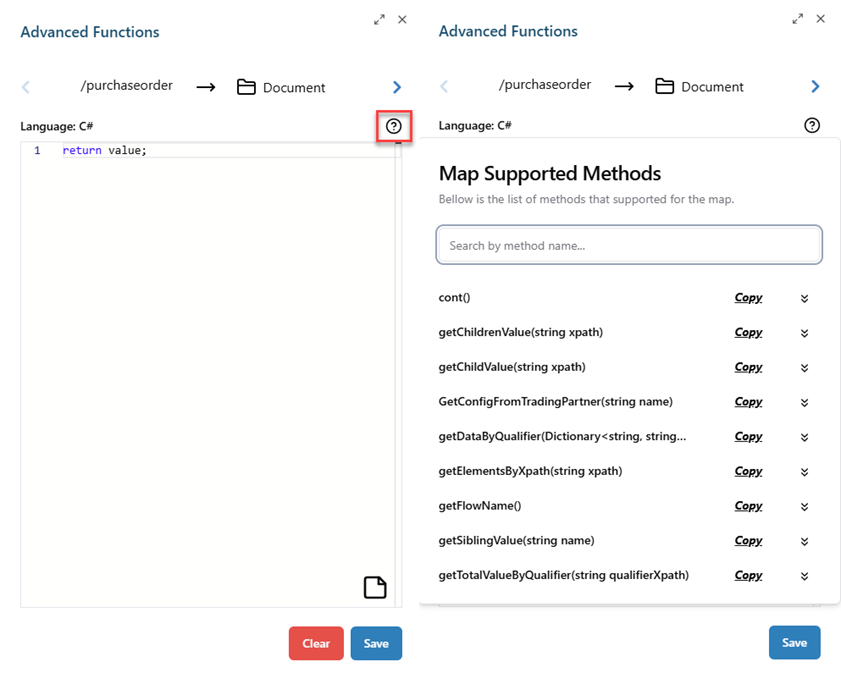

- Additionally, to learn more about the functions, click the question button in the red square, simplify will show the list of usable function:

- Besides, there is a place to store code snippets, allowing you to retrieve and reuse them easily.

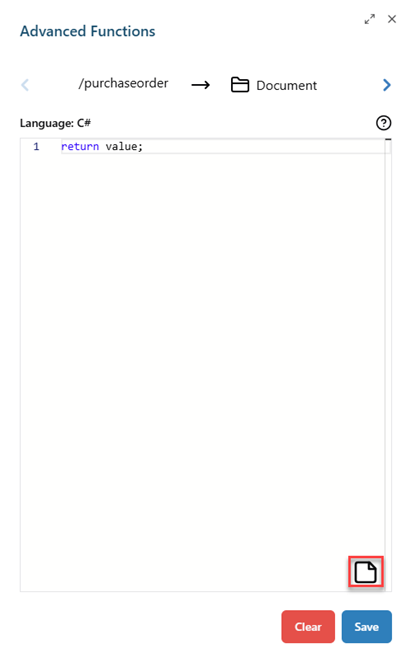

- Create new note: Click the page button in the red square.

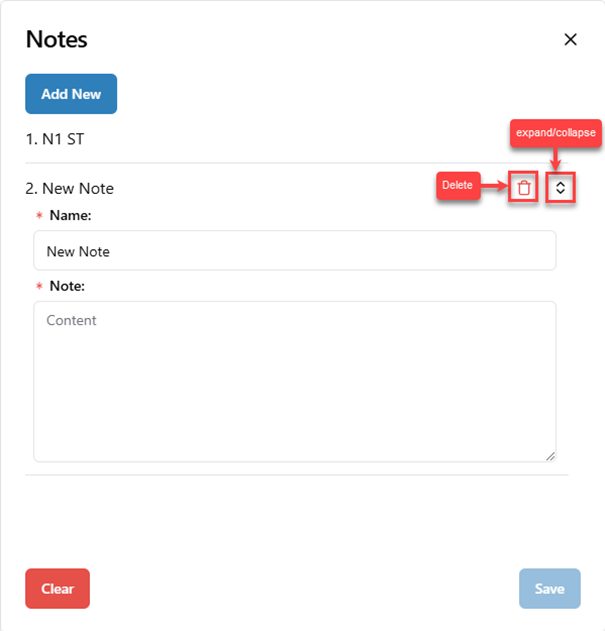

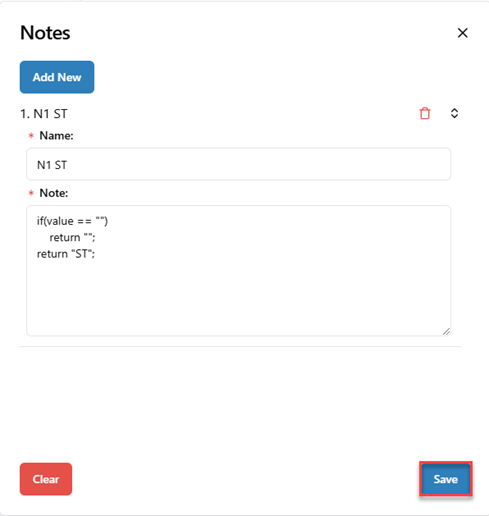

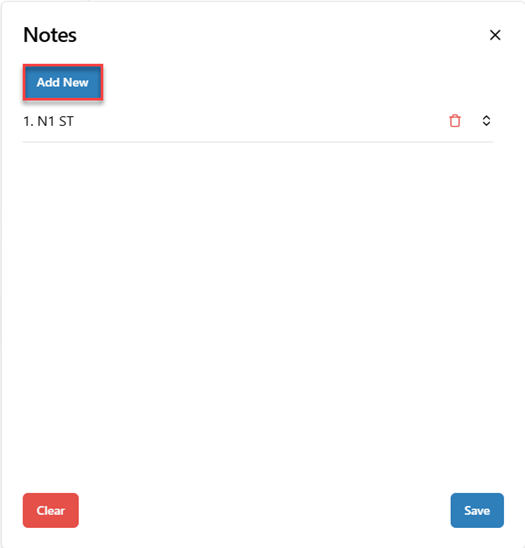

- Simplify will display a Notes dialog, where you can click Add New to create a new note.

- After clicking, it will display the New Note field.

- Delete: Used to delete a note.
- Expand/Collapse: Used to expand or collapse a note.
- Name: The note's title.
- Note: The note's content.
- Save the note: Click Save button.

- Create new note: Click the page button in the red square.
- Add rule for data link: You can also add rules to modify data, requiring only a minimal amount of C# code.

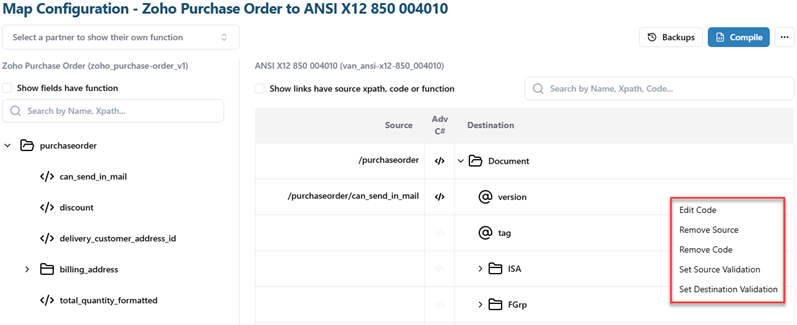

- Right-click on the field on the right side, and Simplify will display a dialog within the red square.

- Remove Source: Remove the link you dragged and dropped into the source.
- Remove Code: Remove the C# code for a link.
- Set Source Validation: Define validation rules for the source.
- Set Destination Validation: Define validation rules for the destination.
- Edit Code: Edit the C# code for a link.
- Select Set Destination Validation to define rules for the link.

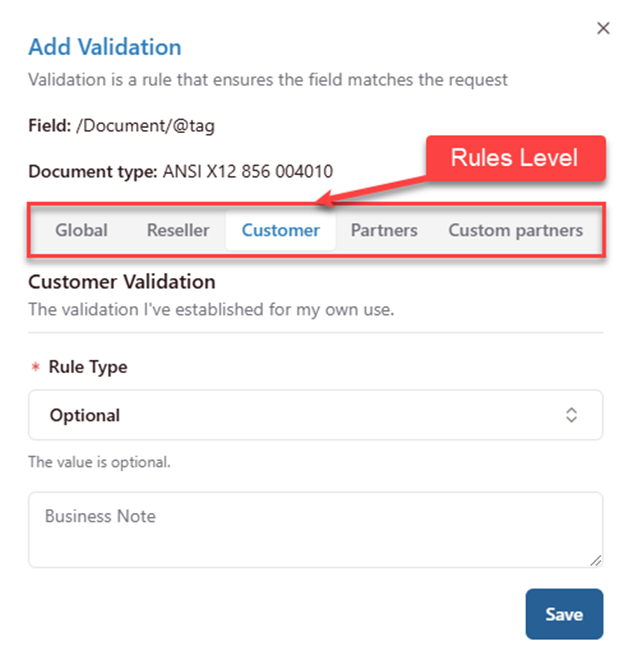

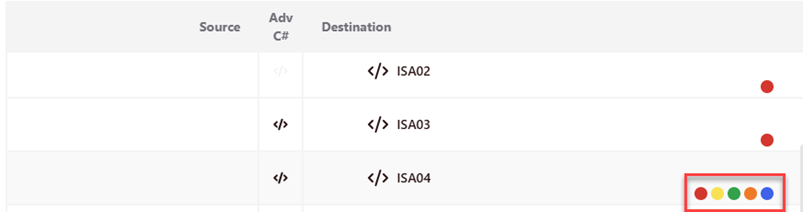

Levels rule include:
- Global: The rule is highlighted in red. It defines data applicable to all users using this document type.
- Reseller: The rule is highlighted in orange. It defines data that applies to all customers within the reseller.
- Customer: The rule is highlighted in yellow. It defines data that applies to all partners within the customers.
- Partners: The rule is highlighted in blue. The rule defines data applicable to each individual partner.
- Custom partners: The rule is highlighted in green. It defines data applicable to all files of the customer what is using this document type.

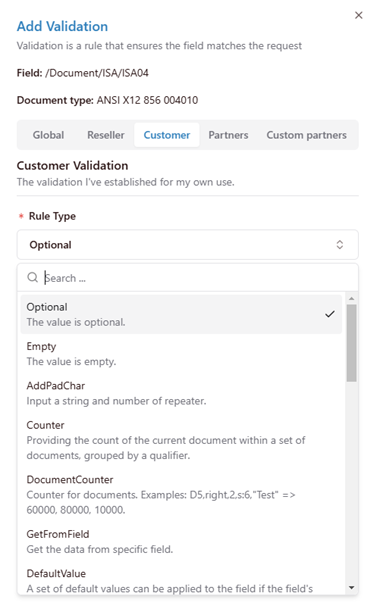

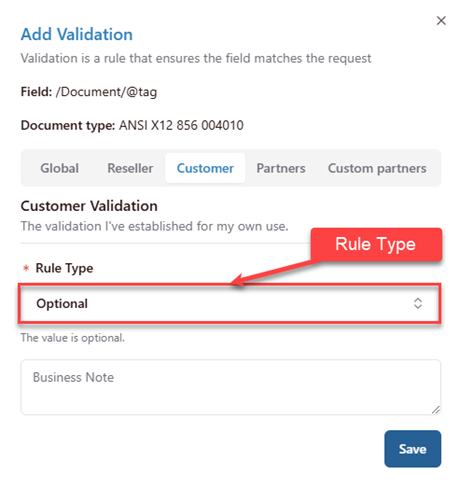

- Rule Type: Click field in the red square, simplify will show the list of usable rule: List of Validation Rules


- Right-click on the field on the right side, and Simplify will display a dialog within the red square.
- Clone Link: How to Clone Link
- Drag and Drop: You can move a field in the Source Document Type from the left side to the right side by holding down the mouse.
