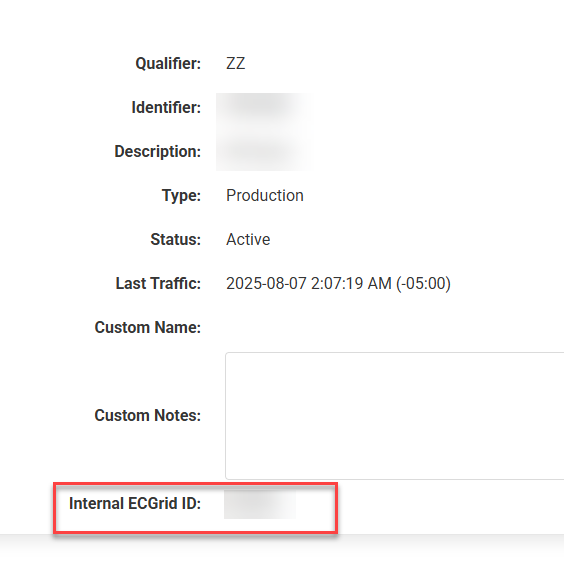

In ECGrid, you need to setup an MFT mailbox first along with EDI IDs for the MFT mailbox.  The qualifier should always be "MX" and the ID can be anything you want less than 15 characters.  This qual:ID is used to virtually envelope the document for routing in our system.  After you add this qual:ID, make note of the internal ECGrid ID at the bottom of the details page as you will need this for the Simplify setup.

After the qual:ID is setup, you need to setup a partnership with Simplify MFT mailbox to route it to Simplify.  The qual:ID for that is MX:SIMPLIFYPROD.

In Simplify, to set up a connection and flow with ECGrid MFT, we need to perform the following steps:

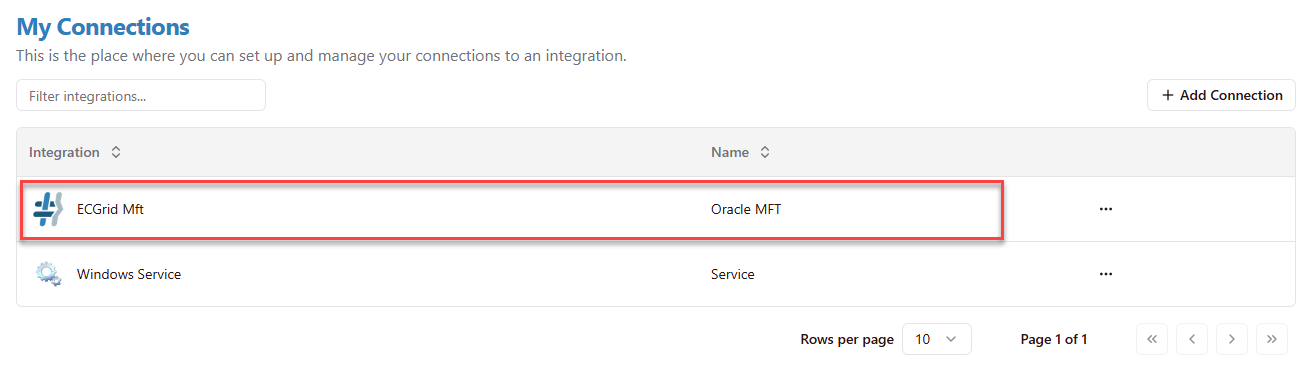

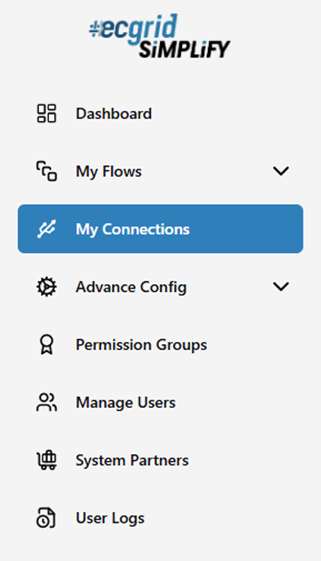

1. Connection: After logging in the Manage User. To add a connection, go to the My Connections page by selecting the menu option on the left.

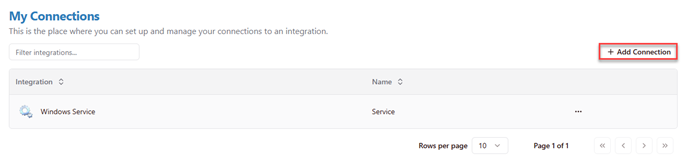

   1. Add connection: Click Add Connection button.

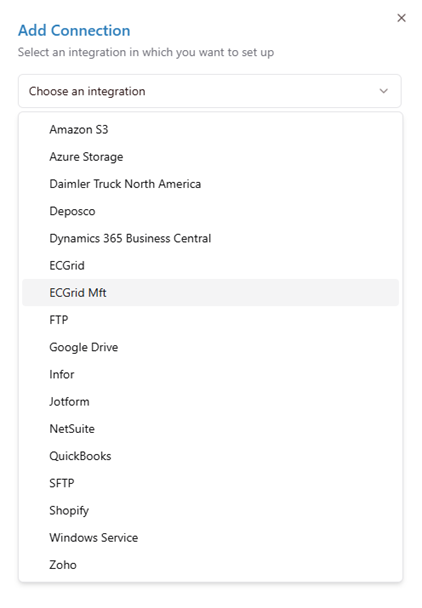

      1. Simplify will display a  dialog to choose the connection: Select ECGrid Mft.

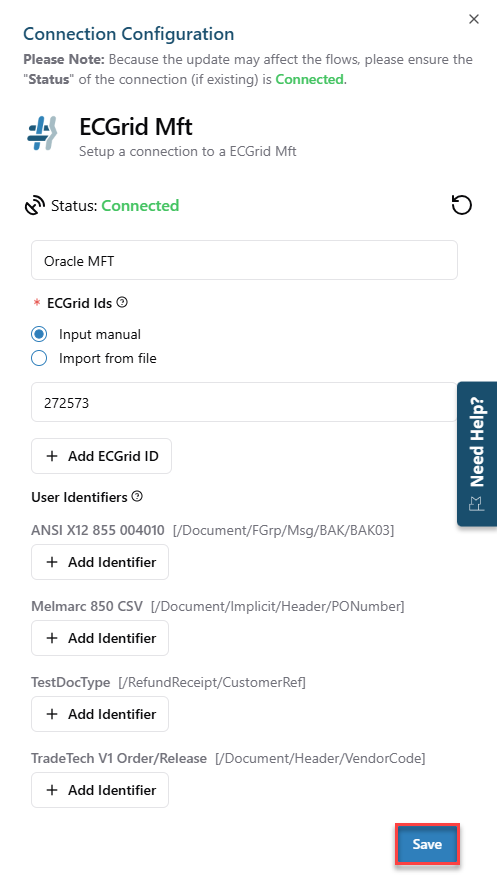

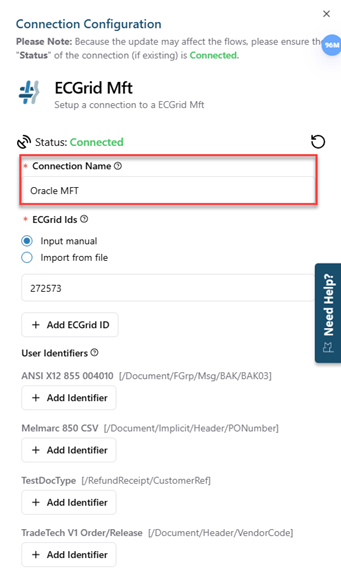

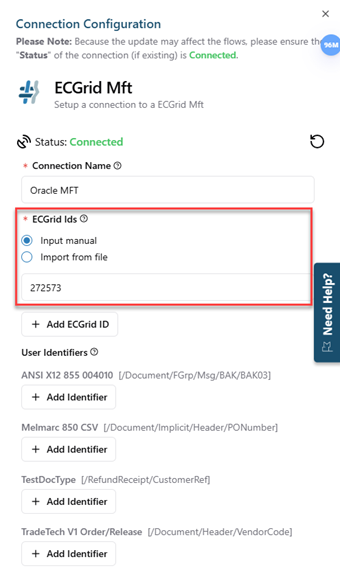

      2. Input the name of ECGrid Mft connection in the Connection Name textbox.

      3. Input the ECGrid internal ID for the MFT qual:ID you just setup in the ECGrid portal for this MFT connection into the ECGrid Ids field, we can input multiple Ids here.

      4. Save Connection: Click Save button.

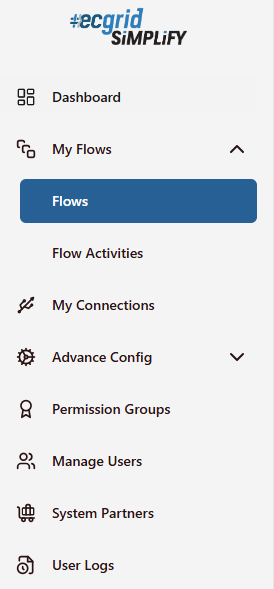

2. Create Flow: After created Connection. To create a flow , go to the My Flow the select Flow page by selecting the menu option on the left.

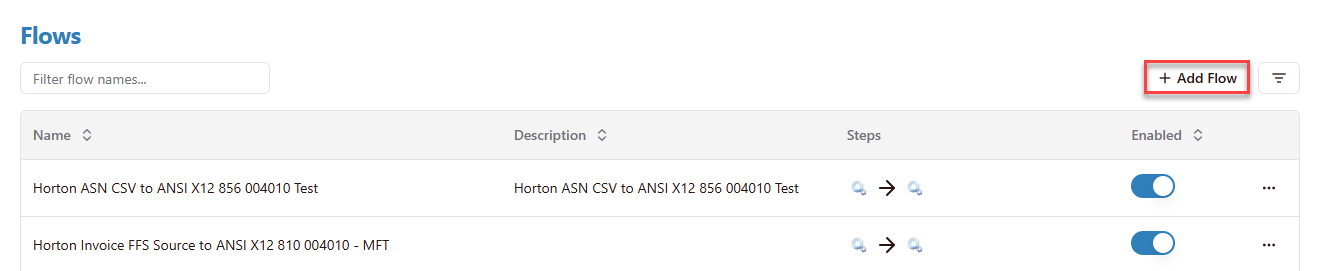

   1. Add Flow: Click Add Flow button.

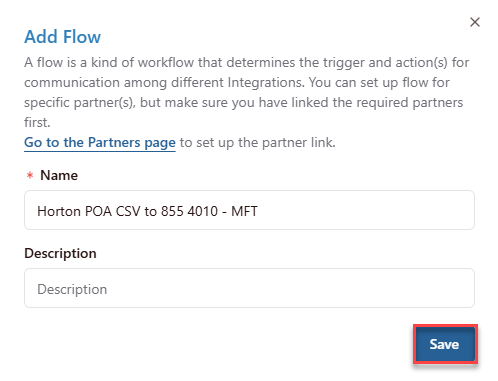

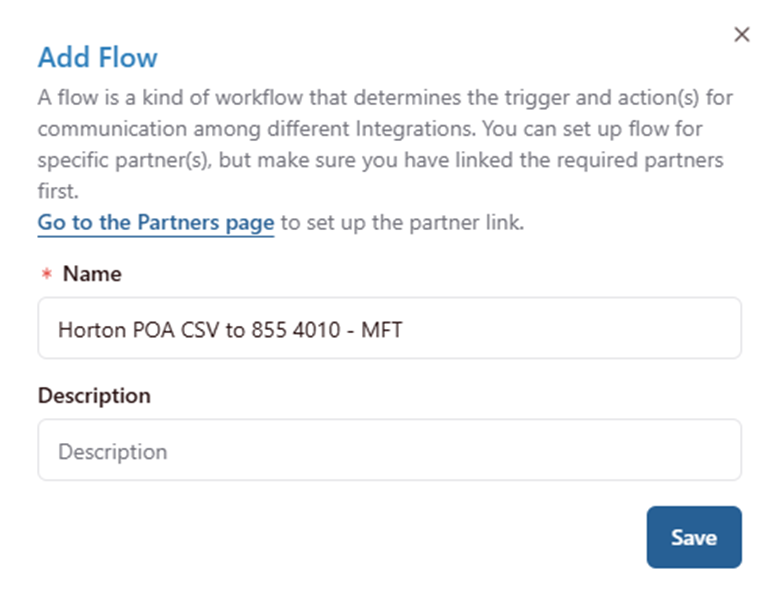

   2. Name Flow: Enter the name into the Name field.

   3. Save the flow you just created: Click Save button.

   4. After save the flow, Simplify will display Flow Configuration.

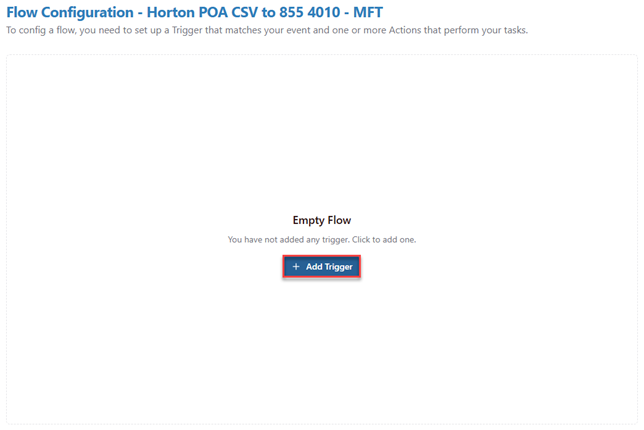

      1. Add Source: Click Add Trigger to create the Source.

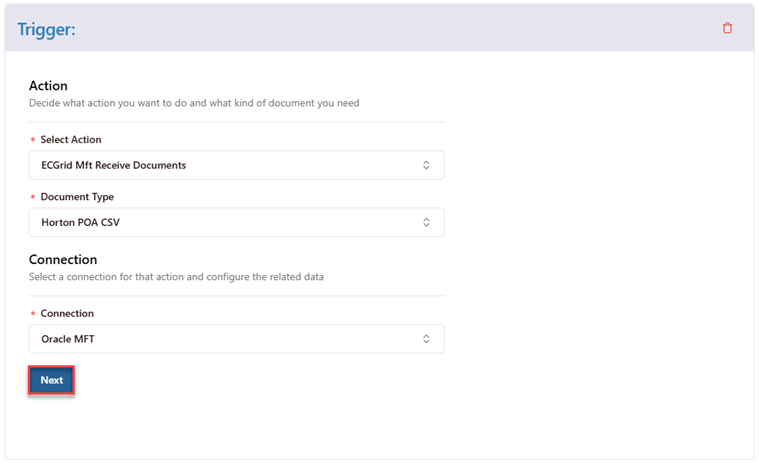

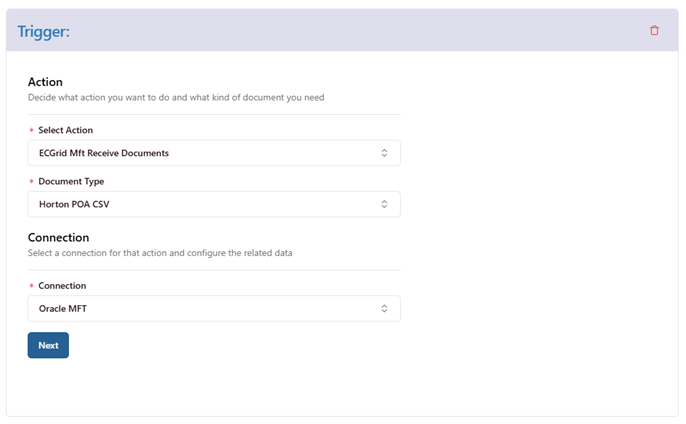

      2. Trigger of the Source includes:

         • Select Action: Choose the action what simplify receives document from.
         • Document Type: Specify the source document what user wants to process.
         • Connection: Select a connection for that action and configure the related data.
      3. Save trigger of the Source: Click Next button.

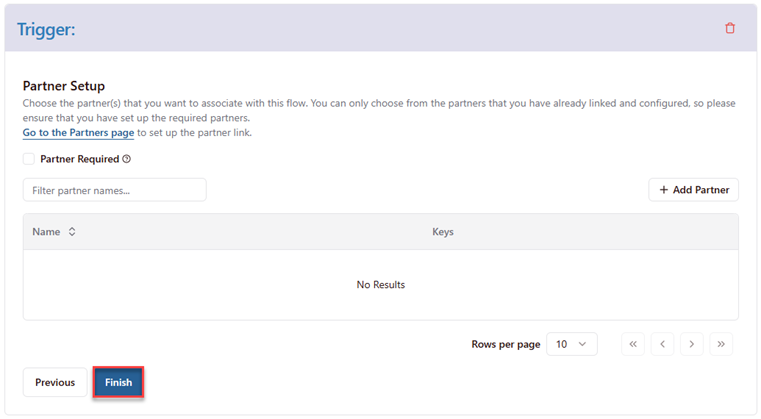

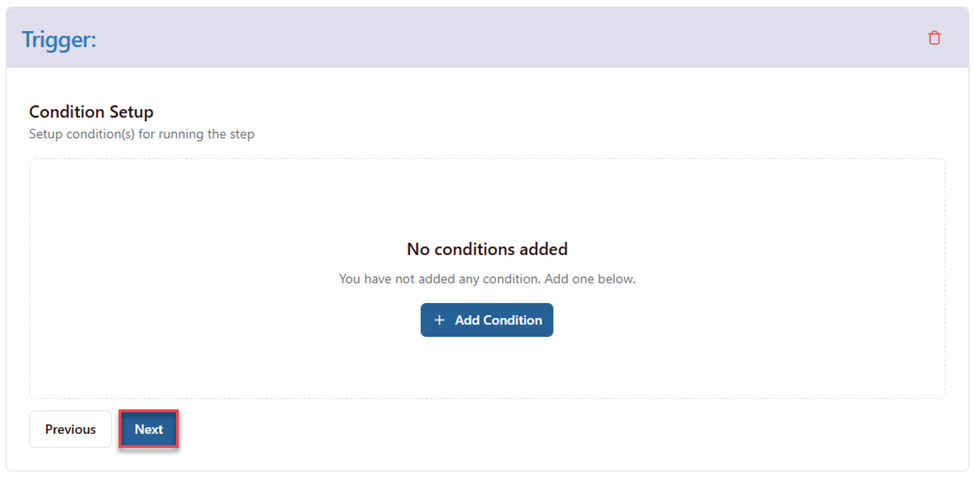

      4. Afterward, Simplify will display the Conditions for running the flow: Click the Next and Finish button to proceed to the next step.

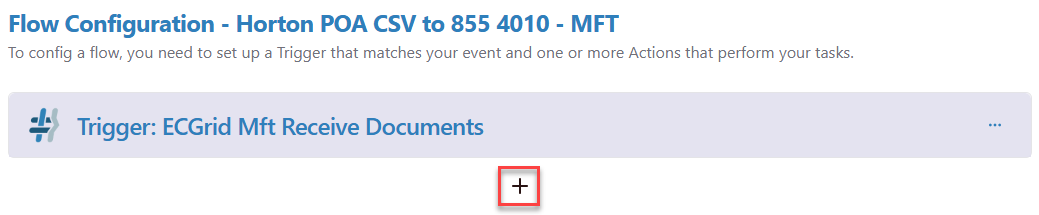

      5. Next, we need to create the Destination: Click the Add button in the red square.

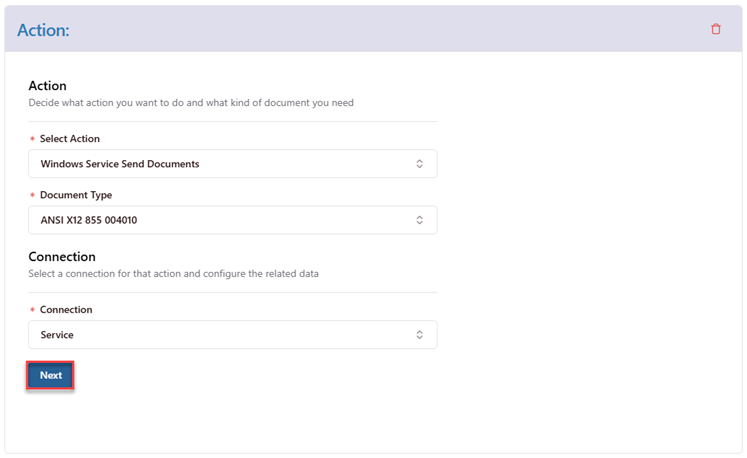

      6. Trigger of the Destination includes:

         • Select Action: Choose the action what simplify receives document from.
         • Document Type: Specify the source document what user wants to process.
         • Connection: Select a connection for that action and configure the related data.

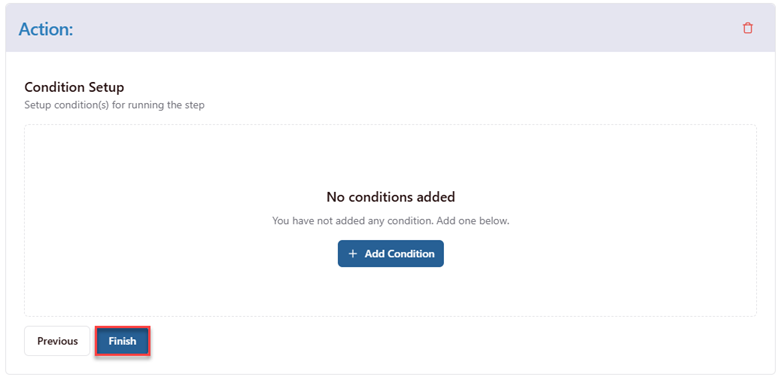

      7. Save trigger of the Destination: Click the Next button, then click the Finish button to complete the flow.
